IBC Tote Washer Manufacturer

Douglas Machines’ vat, bin, and IBC tote washers come in a variety of styles to quickly and efficiently clean and sanitize bulk ingredient containers. Models exist to process one or two containers at a time of various sizes.

Vat, Bin & IBC Tote Washer Process

Regardless of the model, containers are loaded onto the door and placed into a specialized holding bracket. Loading can be done with a pallet jack or forklift or if the container is equipped with wheels, simply rolled into place. When the door is closed, the container is lifted into the wash chamber and positioned for maximum exposure to internal and external wash and rinse jetting to clean both the inside and outside.

Various combinations of rotating, oscillating and fixed jetting is used depending on the container size and the specific vat, bin or IBC tote washer model.

Choose from Douglas Machines’ list of 10 standard vat, bin and IBC tote washers below or have us custom design a solution to your particular requirements.

Vat, Bin & IBC Tote Washer Features

Douglas Machines’ vat and bin washers generally feature a recirculating pre-wash tank, a recirculating detergent wash tank and a separate, freshwater sanitizing rinse section. Cycle times are fully adjustable but a 1-2 minute pre-wash, 1-2 minute wash and a 30 second sanitizing rinse is typical. Allowing extra time for steam evacuation, door operation and loading and unloading, results in 8 to 12 batches an hour. Models that do not have pre-wash tanks can generally be operated at 12 to 18 batches an hour. Note that the IBC-1000 Tote Washer varies in operation from these descriptions.

VBW-1000 Model Commercial Dishwasher Manufacturer Brand Partner Douglas Washing and Sanitizing Systems Safer Cleaner Faster Industrial Dishwasher Restaurant Dishwasher Food Industry Cleaning Machines

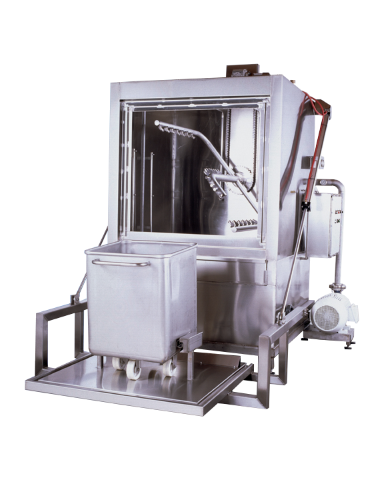

Model VBW-1000

The Douglas Machines’ Model VBW-1000 is designed to wash and sanitize 400# and 600# v-mags/dump buggies. Convenient, push button operation of this Douglas machine activates the door which positions the container in the wash chamber and initiates the cleaning cycle which consists of a recirculating pre-wash, recirculating wash and fresh sanitizing rinse. Douglas Machines’ Model VBW-1000 includes a rinse diverter to preserve the concentration of caustic detergents. An alternative Douglas Machines’ model, the VBW-2000, will clean two per cycle.

VBW-2000 Model Commercial Dishwasher Manufacturer Brand Partner Douglas Washing and Sanitizing Systems Safer Cleaner Faster Industrial Dishwasher Restaurant Dishwasher Food Industry Cleaning Machines

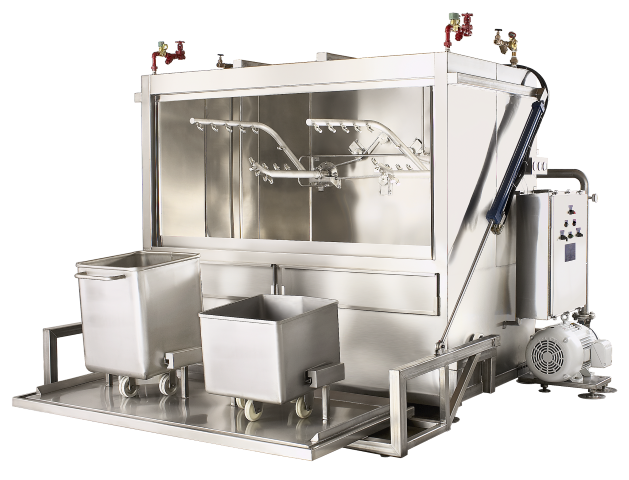

Model VBW-2000

The Douglas Machine Model VBW-2000 operates in the same fashion as the VBW-1000 but has double the capacity.

DVBW-1000-C Model Commercial Dishwasher Manufacturer Brand Partner Douglas Washing and Sanitizing Systems Safer Cleaner Faster Industrial Dishwasher Restaurant Dishwasher Food Industry Cleaning Machines

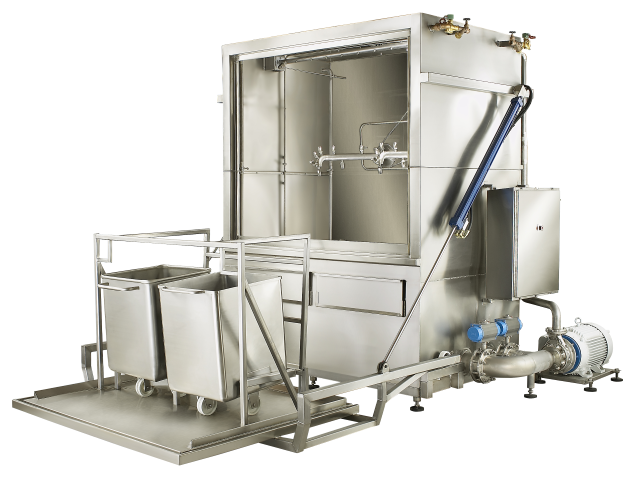

Model DVBW-1000-C

The Douglas Machine Model DVBW-1000-C has the flexibility to wash and sanitize one bin or two 400# or 600# vats at a time using a removable adaptor attached to the door.

BW-1000-E Model Commercial Dishwasher Manufacturer Brand Partner Douglas Washing and Sanitizing Systems Safer Cleaner Faster Industrial Dishwasher Restaurant Dishwasher Food Industry Cleaning Machines

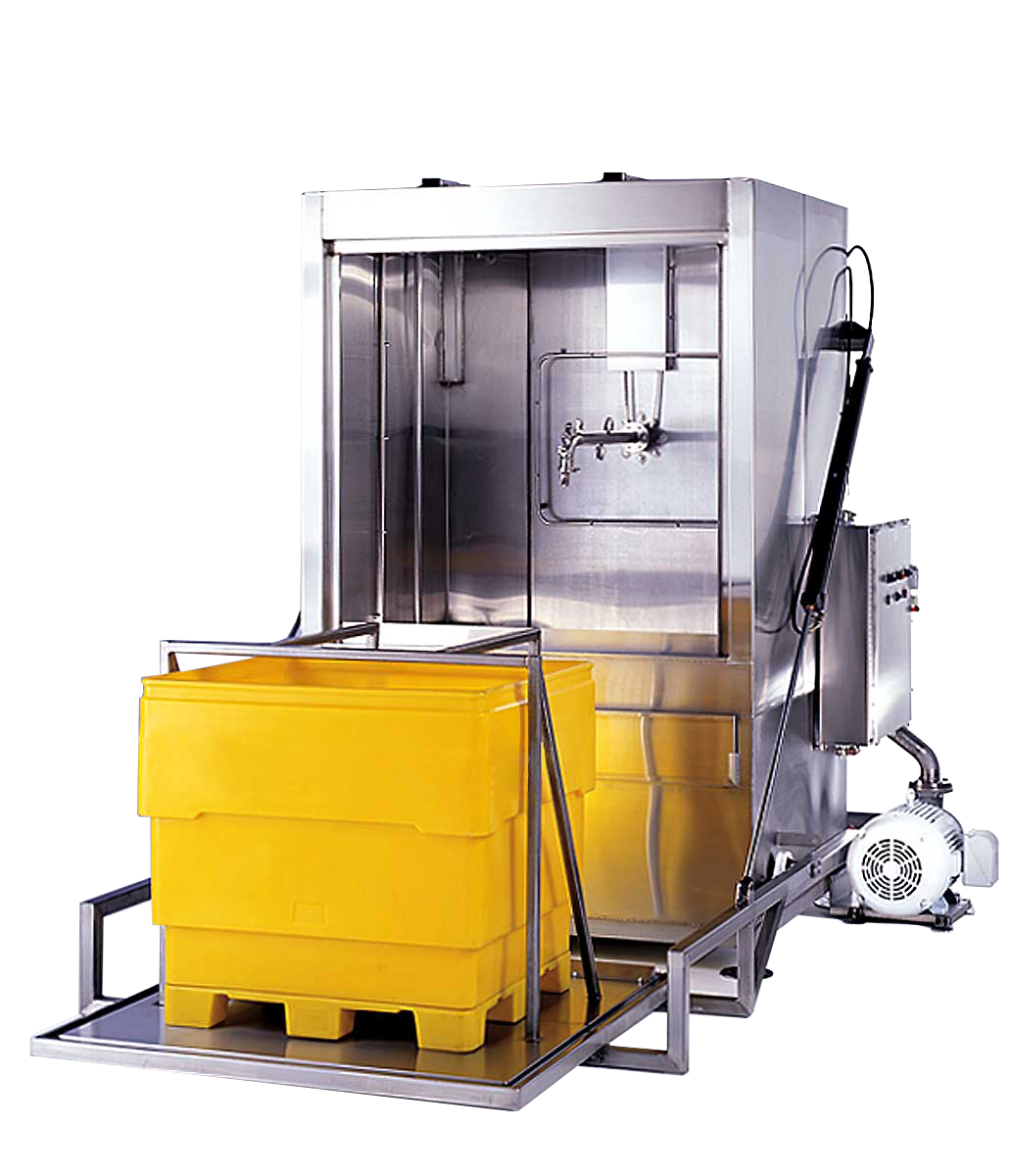

Model BW-1000-E

The Douglas Machine Model BW-1000-E is designed to wash and sanitize plastic or stainless steel bins and other large-volume containers of similar size and weight. Convenient, push-button operation of this Douglas machine activates the door which positions the container in the wash chamber and initiates the cleaning cycle which consists of a recirculating wash and fresh sanitizing rinse. For use with caustic detergents, consider the Douglas Machine Model BW-1000-C.

BW-2000-E Model Commercial Dishwasher Manufacturer Brand Partner Douglas Washing and Sanitizing Systems Safer Cleaner Faster Industrial Dishwasher Restaurant Dishwasher Food Industry Cleaning Machines

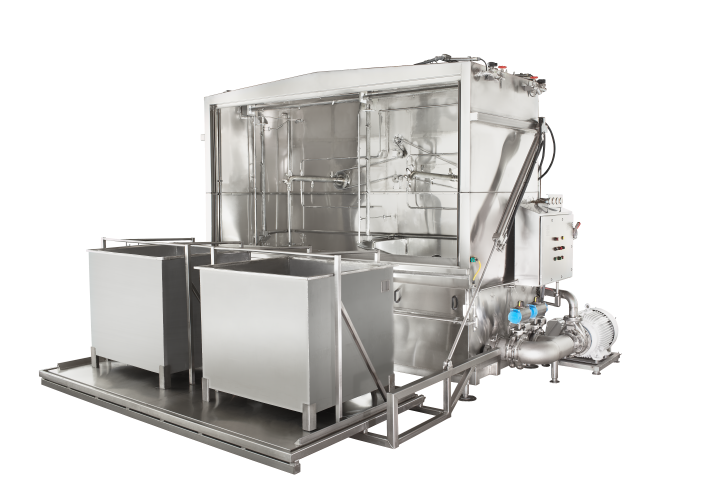

Model BW-2000-E

The Douglas Machine Model BW-2000-E operates in the same fashion as the BW-1000-E but has double the capacity.

BW-1000-C Model Commercial Dishwasher Manufacturer Brand Partner Douglas Washing and Sanitizing Systems Safer Cleaner Faster Industrial Dishwasher Restaurant Dishwasher Food Industry Cleaning Machines

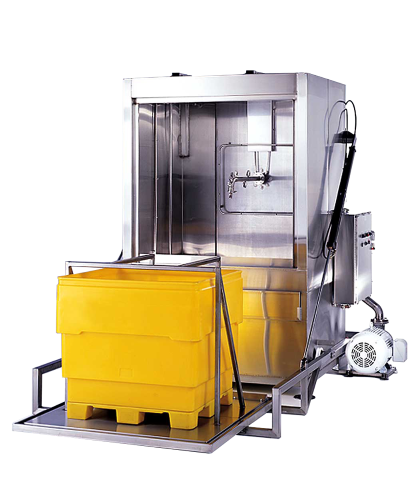

Model BW-1000-C

The Douglas Machine Model BW-1000-C is designed to wash and sanitize plastic or stainless steel bins and other large volume containers of similar size and weight. Convenient, push button operation of this Douglas machine activates the door which positions the container in the wash chamber and initiates the cleaning cycle which consists of a recirculating pre-wash, recirculating wash and fresh sanitizing rinse. This Douglas Machine model includes a rinse diverter to preserve the concentration of caustic detergents.

BW-1000-C-180 Model Commercial Dishwasher Manufacturer Brand Partner Douglas Washing and Sanitizing Systems Safer Cleaner Faster Industrial Dishwasher Restaurant Dishwasher Food Industry Cleaning Machines

Model BW-1000-C-180

The Douglas Machine Model BW-1000-C-180 is a special version of the BW-1000-C. The main difference is that containers are inverted 180 degrees inside the wash chamber and there is direct spray delivered to all surfaces. This is especially helpful when the bottoms of containers are heavily soiled or when the design of the bin would otherwise stop water from draining properly at 90 degrees. The door is gear driven vs. hydraulic-driven which speeds up the process of raising and lowering the container while reducing cost.

BW-2000-C Model Commercial Dishwasher Manufacturer Brand Partner Douglas Washing and Sanitizing Systems Safer Cleaner Faster Industrial Dishwasher Restaurant Dishwasher Food Industry Cleaning Machines

Model BW-2000-C

The Douglas Machine Model BW-2000-C operates in the same fashion as the BW-1000-C but has double the capacity.

IBC-1000 Model Commercial Dishwasher Manufacturer Brand Partner Douglas Washing and Sanitizing Systems Safer Cleaner Faster Industrial Dishwasher Restaurant Dishwasher Food Industry Cleaning Machines

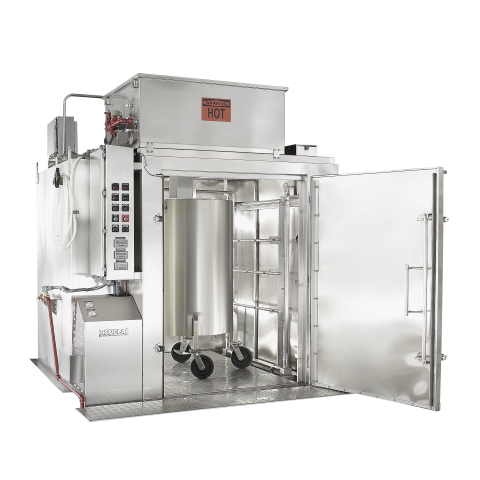

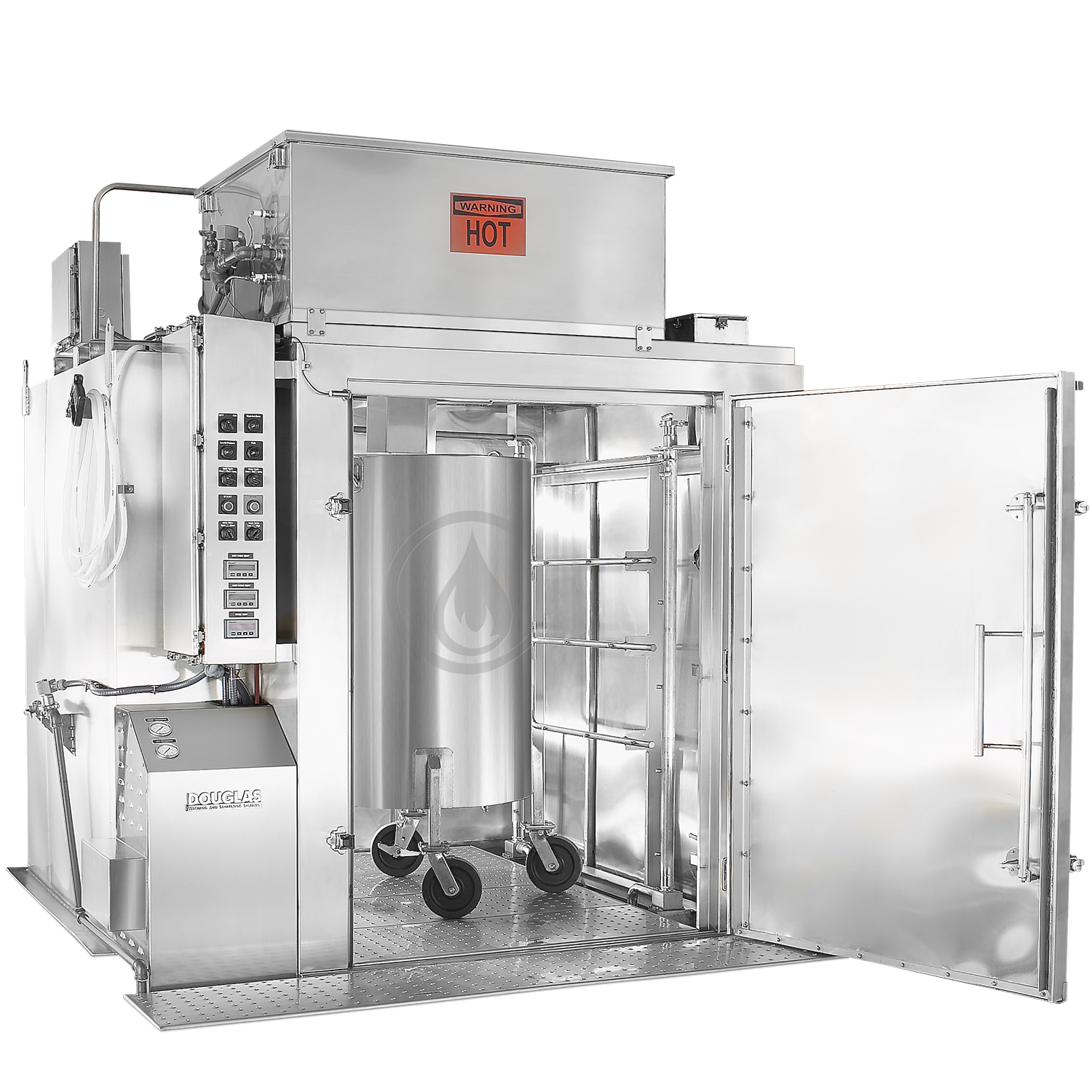

Model IBC-1000

The Douglas Machine Model IBC-1000 is designed to wash and sanitize Intermediate Bulk Containers and other large-volume Totes and Bins that have access holes in the top and drain holes in the bottom. The machine features a retractable spray arm that protrudes into the container to clean the inside and a series of oscillating wash arms clean the outside.
